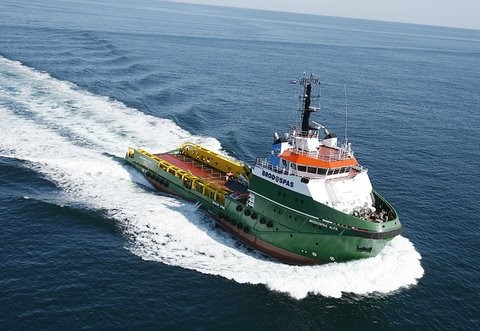

Brodospas Alfa


General
YARDNUMBER 552101
IMO NUMBER 9451587
DELIVERED 2009
VESSEL BUILT "Damen" shipyard - Galati
BASIC FUNCTIONS Offshore supply, towing, anchor handling operations,
fire-fighting and oil recovery operations
CLASSIFICATION Bureau Veritas
I HULL MACH
Tug; Supply vessel/Special service - Anchor handling; Fire-fighting ship 1;
Oil Recovery Ship - water spraying
Unrestricted navigation
AUT-UMS; DYNAPOS -AM/AT -R
FLAG Malta - Valletta
OWNER Croatia, Shipping LTD.
MANAGER Brodospas - Split
Dimensions
LENGHT O.A. 67.10 m
ARTICLE 2(8) 62.48 m
BEAM MLD. 15.00 m
DEPTH MLD. 6.75 m
DRAUGHT SUMMER 5.50 m
DEADWEIGHT (SUMMER) 1913 t
GRT 2485 t
NET 745 t
DECK AREA 410 m2
DECK LOAD
(AT 1 m ABOVE DECK)
900 t
DECK LOAD 5 t/m2
Tank capacities
BALLAST / DRILL WATER 775 m3
FUEL OIL (SERVICE) 435 m3
PORTABLE WATER 297 m3
DRY BULK 172 m3
FUEL OIL - CARGO 480 m3
CARGO LIQUID MUD/ BRINE / FUEL 456 m3
RECOVERED OIL (PART OF L.M.) 209 m3
CHAIN LOCKERS 138 m3
Performances
SPEED 15.0 kn
BOLLARD PULL 130 t
MAX SPEED / CONSUMPTION 15 kn / 46 m3/day
ECONOMY SPEED / CONSUMPTION 12 kn / 26 m3/day
ECONOMY SPEED / CONSUMPTION (WITH ONE MAIN ENGINE) 10 kn / 15 m3/day
Propulsion system
MAIN ENGINES 2 x CAT C280-12
PROPULSION POWER 2 x 4060 kW at 1000 rpm
PROPELLERS, R.R. 2 x 3400 mm, CPP, in optima nozzles
BOW THRUSTERS, R.R. 2 x 450 ekW, 1300 mm, CPP
STERN THRUSTER, R.R. 1 x 450 ekW, 1300 mm, CPP



 Auxiliary equipment
SHAFT GENERATORS 2 x 1000 ekw at 1800 rpm,440 V,60 Hz
GENERATOR SETS 2 x CAT C18-TA,each 408 ekW at 1800 rpm, 440 V, 60 Hz
EMERG./HARBOUR GEN.SET 1 x CAT C9-TA,163 ekW at 1800 rpm, 440 V, 60 Hz
SPRAY BOOMS
DISPERSANT SYSTEM  13.8 m3

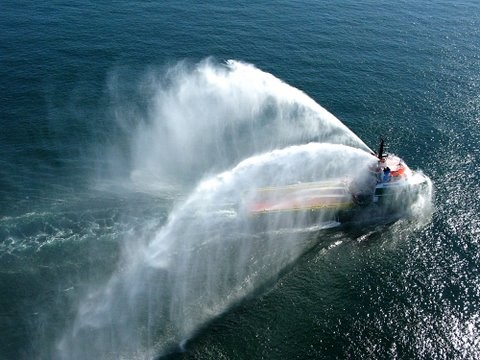

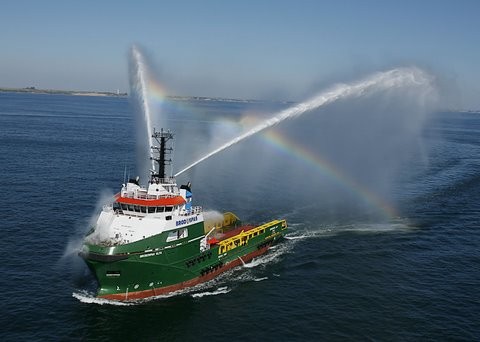

Fire-fighting

FIRE-FIGHTING EQUIPMENT Two main engines driven pumps, 2400 m3/h



Deck lay-out
ANCHOR MOORING WINCH 1 x Hydraulic, with two warping heads
CAPSTANS 2 x Hydraulic, each 5 t to pull
DECK CRANE 1 x knuckle boom 2.8 t at 10.82 m (harbour with winch)
MOBILE DECK CRANE Available on request type: GROVE GMK 5220, SWL at 14 m width 26 t / 36 m width 10 t
TOWING WINCH 1 x LP Hydraulic, double drum, 150 t pull, 250 t brake
MAIN TOWING WIRE 1100 m/64 mm
TOWING PINS 1 x SWL 180 t
CHAIN FORK 1 x SWL 250 t
TUGGER WINCH 2 x Hydraulic, each 10 t pull
FAST CRAFT BOAT / WORKING BOAT 1 x 6.7 m, 230 HP diesel engine
FAST RESCUE BOAT 1 x 29.4 kW
Cargo handling system
BALLAST / DRILL WATER PUMP 2 x 120 m3/h at 8.0 bar
FUEL OIL PUMP 2 x 120 m3/h at 9.0 bar
FRESH WATER PUMP 1 x 120 m3/h at 9.5 bar
DRY BULK COMPRESSOR 75 t/h at 6.0 bar
LIQUID MUD / BRINE PUMP 2 x 75 m3/h at 20.0 bar
Accommodation
CREW 17 (29 total)
SUPER NUMERARIES 12
Nautical and communication equipment
CALL SIGN 9HA2915
RADAR SYSTEM 1 x X-band + S-band / ARPA
DP- SYSTEMS DP-2
GMDSS Area A3
SATCOM fleet broad band
