Brodospas Moon


General
IMO NUMBER 8206985
FORMER NAME BRODOSPAS 44
OWNER BRODOSPAS - SPLIT, CROATIA SHIPPING LTD
MANAGER BRODOSPAS - SPLIT
COUNTRY AND PORT OF. REG. MALTA - VALLETTA
DELIVERED 1986
VESSEL BUILT BRODOGRADILIŠTE "J. L. MOSOR" TROGIR
CLASSIFICATION BUREAU VERITAS, CROATIAN REGISTER
I HULL MACH
SPECIAL SERVICE / Offshore tug; Supply Vessel;
Firefighting ship 1 with water spraying
Unresticted navigation
AUT -UMS
NOBLE, DENTON ASSOCIATED LTD YES
Dimensions
LENGHT O. A. 66,65 m
LENGHT ARTICLE 2 (8) 60,62 m
BREADTH MOULDED 14,56 m
DEPTH MOULDED 7,00 m
DRAFT 5,20 m
FREEBOARD 1802 mm
GROSS TONNAGE 1632
NET TONNAGE 761
DEADWEIGHT 1350 tons
SUEZ CANAL CERTIFICATE (YES/NO) YES
LOADING CAPACITIES
DECK MEASUREMENTS 420 m2
DECK CARGO CAPACITY 750 tons
DECK STRENGHT - AFT PART 5 tons / m2

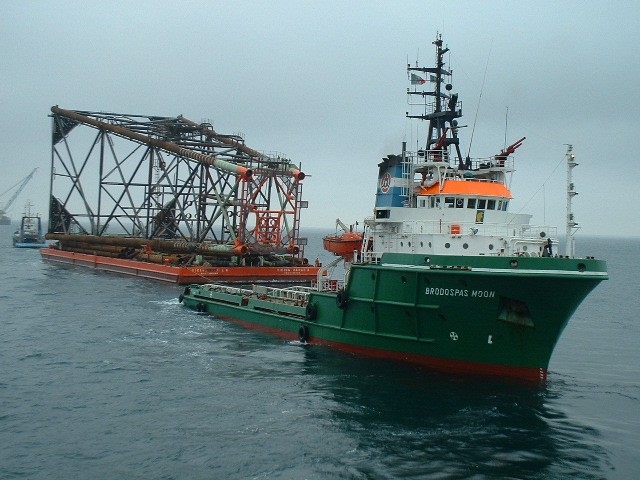

Towing - Anchorhandling
BOLLARD PULL 106 TONS MAX.
RIG CHAIN LOCKERS CAPACITY 120 m3
TOWING ANCHORHANDLING WINCH "BRATTVAAG"-SL160-IT/BSLI8OW-2T
No. OF DRUMS THREE
DRUM CAPACITY, EACH DRUM 1 x 1230 m x 61 mm, 2 x 682 m x 61 mm
MIN. RATED PULl/BRAKE 180/250 TONS
EMERGENCY RELEASE OPERATE YES
TOWING MAIN WIRE 1000 m x 60 mm
TOWING SPARE WIRE 1000 m x 61 mm
TOWING SHACKLES (No/TYPE/S WL) 28 CROSBY (SIZE: 25,35,55,85,110TONS)
TO WING QUICK RELEASE FROM WHEELHOUSE; FROM DECK
TOWING PINS YES (TWO ULSTEIN TOWING PINS)
TOWING GUIDE/GOG EYE TYPE PAD EYE REMOVABLE
STERN ROLLER, DIAMETER "ULSTEIN", 2200 mm
PENNANT WIRE/CHAIN STOPPERS KARM FORK STANDARD TYPE 500 TONS SWL
Deck equipment
ANCHORS
PORT ANCHOR TYPE: HALL, WEIGHT: 2054 kg, CABLE DIA: 36, CABLE LENGTH: 688
STARB. ANCHOR TYPE: HALL, WEIGHT: 2038 kg, CABLE DIA: 36, CABLE LENGTH: 688
SPARE ANCHOR TYPE: HALL, WEIGHT: 2050 kg
ANCHOR WINDLASS, MAKE BRATITVAAG/B9-50-36
CAPSTANS BRATTVAAG/CM 4 185
TUGGER WINCHES BRATTVAAG (WMA 1010/10 TONS)
CARGO CRANE MAKE TYPE: GREBEN - SI-IAT SWL: 2 AT: 10 m OUTREACH
RESCUE BOAT  1 x 6 PERSONS
INFLATABLE LIFE RAFTS No.: FOUR ; TOTAL CAPACITY: 86  PERSONS
RIGID WORK BOAT No.: ONE ; TOTAL CAPACITY: 6 PERSONS
SPRAY BOOMS DISPERSANT SYSTEM
Tank capacities and discharge rates
BULK CEMENT TANKS 170 m3; 80 TONS / HOUR AT 5,6 BAR
POTABLE WATER CAPACITY 355 m3; 120 TONS / HOUR AT 8 BAR
DRILL WATER CAPACITY 658 m3; 120 TONS / HOUR AT 8 BAR
FUEL OIL CAPACITY -TOTAL 667 m3; 120 TONS / HOUR AT 8 BAR
LIQUID MUD CAPACITY 259 m3; 75 m3/h
Propulsion system
MAIN ENGINES PIELSTICK JUGOTURBINA TYPE: 6 PA 6 L 280
BORE:280mm, STROKE: 290mm
POWER kW: 4x1590 TOTAL kW: 6360 AT 900 rpm
AUXILIARY ENGINE PIELSTICK, JUGOTURBINA 4PA6L185
GENERATORS SG 2x1300 kVA, DG 2x665 kVA, E/G 1x125 kVA
TOTAL GENER/ELEC. POWER 4030 kVA
VOLTAGE 440 V
FREQUENCY 60Hz
MAIN PROPELLERS CCP, AM. LIAAEN TYPE: EG 85 DIA. 3000
NOZZLES - MAKE AM. LIAAEN TYPE: FIXED
BOW THRUSTER No. ONE, TOTAL kW: 515,
TOTAL THRUST: 7,3 TONS,
BRUNVOLL TYPE: SPX- VP
AFT THRUSTER No. ONE, TOTAL kW: 367,
TOTAL THRUST: 5,3 TONS,
BRUNVOLL TYPE: SPT- VP
SPEED/CONSUMPTION
MAX. CRUISING SPEED 16 KNOTS, CONSUMPTION: 33 TONS, RANGE: 20 DAYS
ECON. CRUISING SPEED 11,5 KNOTS, CONSUMPTION: 10 TONS, RANGE: 66 DAYS
INTEGRATED MANEUVRING SYSTEM AM. LIAAEN TYPE: POSCON 222

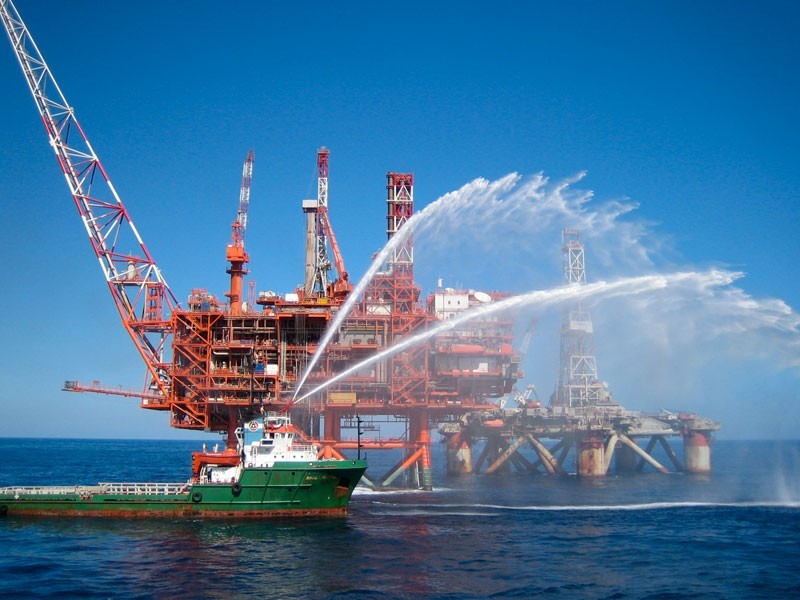

Firefighting
TOTAL CAPACITY OF MAIN FIRE PUMPS 2400 m3/h
Nautical and communication equipment
CALL SIGN 9HA2248
GMDSS AREA A3
R/T (SSB) MAKE T&T / SAILOR Compact HF SSB HC 4500
2x VHF/DSC SAILOR RT 4822
3 x VHF / GMDSS SAILOR
2 x INM-C T&T 3020 C
SAT. COM. FLEET 33
SAT. COM. MINI M
1 x RADAR 3 cm FURUNO FR-2115 21" Display ARPA, x band
1 x RADAR FURUNO ARPA, s band
GYROCOMPASS ANSHUTZ / SD 12
MAGNETIC COMPASS HRCKELMAN / REFLECTOR
AUTOPILOT ANSHUTZ / SD 12
ECHOSOUNDER SIMRAD ED - 161
SATELLITE NAVIGATOR Magnavox MX-200 Professional; Furuno GP - 30/35
1 x INTERNAL COM. SYSTEM AMPLIDAN 1525 MK-1-10
1 x INTERNAL COM. SYSTEM VINGTOR VKA
EMERGENCY STEERING POSITION FROM STEERING ROOM COMPARTMENT
VOICE COMM. - BRIDGE - ENM. STEERING Baterryless Telephone System
VOICE COMM. - MAG.COMP. - STERREING Talk Back System (Amplidan)
VOICE COMM. - BRIDGE - ENG.ROOM Vingtor VKA and Vingtor VSP
PORTABLE RADIO COMM. 2x MOTOROLA
GPS PLOTER chart master interphase 11 CV"S"
NAVTEX FURUNO 208 A with NX 500
2xSART SIMRAD
EPIRB Mc Murdo E3
AIS FURUNO FA-100
LRIT T&T
Accomodation
CREW 14 (TOTAL 26)
TOTAL No. OF SUPERNUMERARIES PERMITTED 12
CREW CABIN No. 13
SUPERNUMERARY CABINS 2
SUPERNUMERARY BERTHS 12
SHIP'S HOSPITAL, PERSONS 1
Other matrials / equipment
COMPLETE WORKSHOP WITH LATHE, DRILLING MACHINE, GRINDER ETC
GAS/OXYGEN AND ELECTRIC CUTIING/WELDING EQUIPMENT
