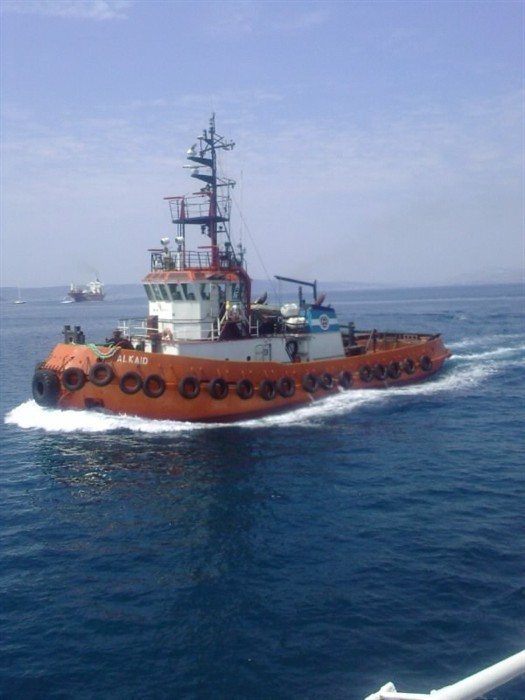

Alkaid


General
IMO NUMBER 8920933
OWNER BRODOSPAS - SPLIT
MANAGER BRODOSPAS - SPLIT
COUNTRY AND PORT OF. REG. CROATIA, SPLIT
DELIVERED 1991.
CLASIFICATION BUREAU VERITAS / CROATIAN REGISTER
VESSEL BUILT PROMET RIVATE LTD SINGAPORE
Dimensions
LENGHT OVERALL 28,00m
LENGHT ARTICLE 2 (8) 26,52m
BREADTH MOULDED 8,20m
DEPTH, MOULDED, MIDSHIP 4,00m
DRAFT 3,00m
GROSS TONNAGE 220 TONS
NET TONNAGE 66 TONS
Tank Capacities
FUEL OIL TANKS 125,66 TONS
FRESH WATER TANKS 26,36 TONS
FOAM TANKS 15,16m3
OIL DISPERSANT 13,31m3
Speed, bollard pull
TRIAL SPEED 12,8kN
BOLLARD PULL 30 TONS
Towing gear & equipment
TOWING WINCH One unit electro hydraulic towing winch of 50 t brake, 10 m./min.
Detain capacity: 500 mx 38 mm.
Remote and local control.
TOWING HOOK One 30 tons SWL towing hook electro-hydraulic release.
Remote and local quick release.
WINDLASS/ROPE REEL One electro hydraulic anchor windlass/winch, suitable for 19 mm dia chain.
The rope winch to be suitable 75 mm dia nylon rope, 100 m
, and the rope breaking strengh of 44 tons.
ANCHORS AND CHAINS 3 x 360 kg, chain 220 m, u2 quality.
Bridge, navigational equipment
BRIDGE, NAVIGATIONAL EQUIPMENT One radar, magnetic eompass, VHF.
SSB TRANSCEIVER FS-1500 (1,6 -23 MHz)
VHFx2 DEBEG 6330
FURUNO FM 2510
RADAR x2 TOKYO KEIKI BR-l00-054
FURUNO FR 8100 DA
ECHO SOUNDER FURUNO FE 6300
NAVTEX IMC NT 900
SAT. NAV. INTERPHASE STAR PILOT 6
E.P.I.R.B. LOKATA 406-2
WATCHKEEPER 2182 kHz SAILOR R 501
Accomodation
ACCOMODATION High standard accomodation for 10 person, including two single and four double with common toilet space.
Life saving appliances
LIFE SAVING APPLIANCES Two inflatable liferafts, 10 persons each. One inflatable rescue boat.
Propulsion machinery
MAIN ENGINES Two units of GM 16 V - 149 T Detroit diesel marine propulsion engine, 2 x 906 kW AT 1800 rpm.
GENERATING SET "GM" Detroit diesel 4-71 T coupled to a 100 kVA,
3 phase at 1500 rpm, 415 V.
BOW THRUSTER UNIT One unit "SCHOITEL" model: STT-010-LK thrust
approx. 1000 kg (62 kW electric motor driven)
OIL DISPERSANT SYSTEM The system consist of:
- 2x5 m hinged booma each with four spray nozzles
- SW supplay by motor driven pump, 37kW, 50 m3/hr at 110 in head.
Firefighting system
FIREFIGHTING EQUIPMENT Firefighting equipineat ins in accordance with rules
and include the foliowing:
- firemain, portable fire extinguishers, fire monitor
(for external, four units each capacity 3000 lit./min.)
Radio
CALL SIGN 9A6797
Automation, control & monitoring
Control and monitoring of main engines, thruster, towing winches etc.
from wheelhouse.
Engine room console for control and monitoring of machinery and ship systems.
