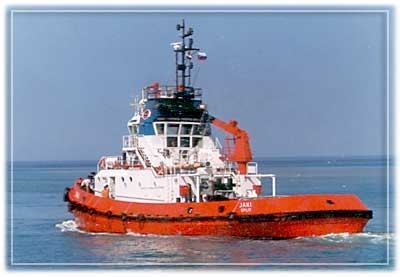

Jaki


General
IMO NUMBER 8715235
OWNER BRODOSPAS - SPLIT
MANAGER BRODOSPAS - SPLIT
COUNTRY AND PORT OF. REG. CROATIA - SPLIT
DELIVERED 1990
VESSEL BUILT AT BRODOGRADILIŠTE "J.L. MOSOR" TROGIR
CLASSIFICATION CROATIAN REGISTER
★100A1 2 TUG FIR S
★M1 AUT3

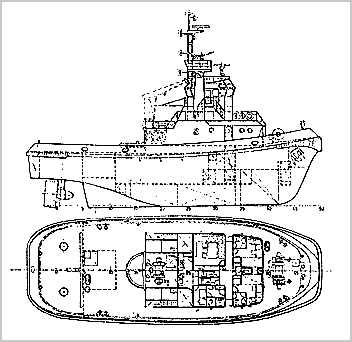

Dimensions
LENGHT OVER ALL 30,50 m
LENGHT ARTICLE 2(8) 27,88 m
BREADTH MOULDED 10,70 m
DEPTH, MOULDED, MIDSHIP 5,27 m
DRAFT 4,15 m
GROSS TONNAGE 353
NET TONNAGE 100
Tank Capacities
FUEL OIL TANKS 165 m3
LUBRICATING OIL CLEAN 2,3 m3
HYDRAULIC OIL 5,3 m3
FRESH WATER TANKS 73 m3
FOAM TANKS 12 m3
BILGE COLLECTING TANK 4 m3
SEWAGE COLLECTING TANK 6 m3
BALLAST TANKS 35 m3
Speed, bollard pull
TRIAL SPEED AT 4,05 DRAFT, AND 2800kW 12,6 KNOTS
BOLLARD PULL 50 TONS
CRUISING RANGE 80% MCR 2800 Nm
Towing gear & equipment
TOWING WINCH One automatical hydranljeally driven, drum capacity 500 m x 42 mm dia.
Pulling force 59 kN. Brake 1000 kN.
Remote and local/control.
WINDLASS/ROPE REEL One unit for 24 mm dia anchor chains with rope reel
for 80 m x 96 nun dia synthetic rope.
Spooling force 59 kN on first layer.
Controlled remotelly and locally.
CAPSTAN One, electrically driven, 30 kN at 12 in/mm.
TOWING HOOK One, 600 kN SWL. Remote and local quick release.
ANCHORS AND CHAINS 3 x 780 kg, chain 330 in, U2 quality.
DECK CRANES One electro-hydraulic type, 30/15 kN SWL at 4,5/8,5 m outreach.
One console type, hand operated for working boat handling.
Bridge, navigational equipment
BRIDGE, NAVIGATIONAL EQUIPMENT Two radars, magnetic compass, speed log, echo sounder, AIS, LRIT, INM-C
VHF radio-telephone. EPIRB,
RADAR TRANSPORDER
Accomodation
ACCOMODATION High standard accomniodation for 10 persons, including two single cabins with private toilet and four double berth cabins with common toilet space.
Life saving appliances
LIFE SAVING APPLIANCES Two inflatable liferufts, 12 persons each.
Propulsion machinery
MAIN ENGINES Two, Jugoturbina - Piclstick 6PA6 280 L diesel engine,
1450 kW MCR each at 900 RPM.
TRANSMISSION One inclined shaft with two universal joints and elastic coupling for each engine.
MAIN PROPELLERS 2 Thrusters unit Type: Lianen TCN 92/62-250 includes hydraulic clutch upper and lower gears,
four bladed Ni-Al bronze controlable pitch propeller 2500 mm dia.
Running in nozzle and hydraulic drive and control for thruster rotation.
ELECTRIC GENERATOR Two sets, 140 kVA each, 3x400 V, 50Hz, 1500RPM diesel engine kW.
Firefighting system
FIREFIGHTING SYSTEM Two main engines driven pumps, 300 m3/h at 14 bar each.
Radio
CALL SIGN JAKI - 9A2244
Automation, control & monitoring
Control and monitoring of main engines, thnsssers, towing winches etc.
from wheelhouse.
Engine romni console for control and monitoring of machinery and ship system.
