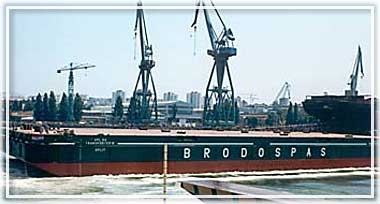

Transporter III

Barge
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
BARGE BUILT Brodogradilište ''Split'', Split
DELIVERED 1993

Possible areas of application of multi-purpose barge

IN ADDITION TO ITS PRIMARY PURPOSE - TRANSPORT OF STANDARD CARGO,
IT CAN BE ALSO USED FOR TRANSPORT OF HEAVY AND LARGE DIMENSIONS
CARGOES, FOR HOLD OF A SHIP OR OFFSHORE STRUCTURE FROM A
HORIZONTAL BERTH AND FOR THEIR END LAUNCHING.

Main Particulars
DIMENSIONS
LENGHT OVERALL 56.00 m
BREADTH OVERALL 22.50 m
DEPTH 5.30m
DRAFT MAX 4.53m
DRAFT LIGHT BARGE 0.83m
GROSS TONNAGE 1717 t
NET TONNAGE 515 t
DEADWEIGHT 4480 t
Deck
LENGHT DECK 55.50 m
BREADTH DECK 22.00 m
DECK MEASUREMENTS 1220 m2
DECK STRENGHT 10 t/m2

Multi-purpose barge

Capacities
THIRTEEN BALLAST TANKS 5305 m3
Diesel agregat
SHIP DIESEL MOTOR MWM TYPE: D 226-4
POWER 34 kW
Ballast pump
CAPACITY TYPE: STUFFING - BOX 300 m3/h
Spatial and functional link of horizontal berth and multi-purpose barge

Launching phases of offshore structure from the barge
