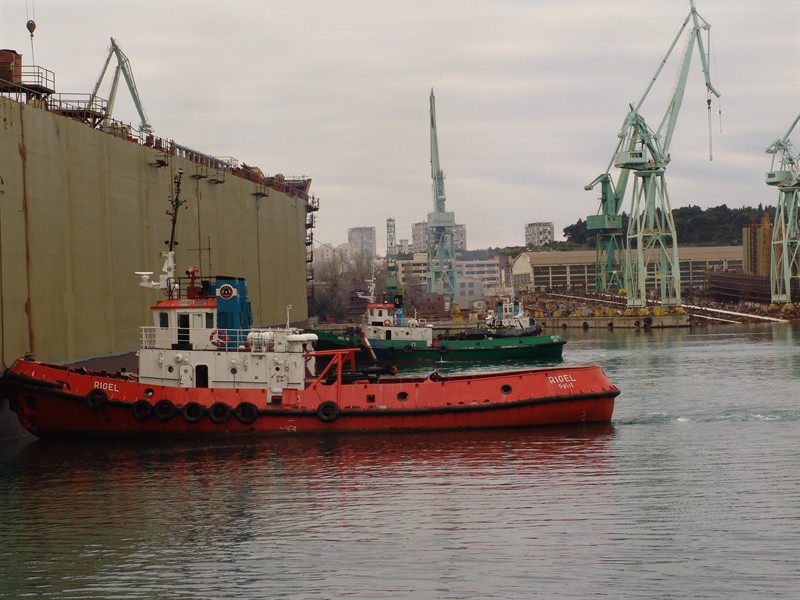

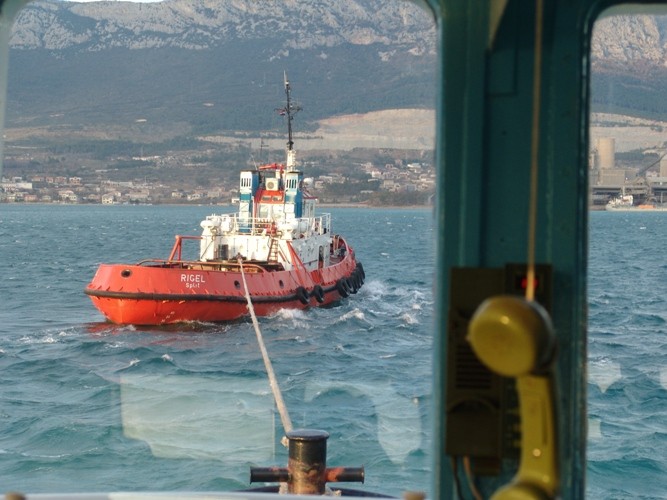

Rigel


General
IMO NUMBER 8730584
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
DELIVERED 1989
VESSEL BUILT Gorokhovets shipyard - Gorokhovets, Russia
CLASSIFICATION Croatian Register
Dimensions
LENGHT OVER ALL 29.3 m
LENGHT ON DESIGN WATERLINE 28.2 m
LENGHT BETWEEN PERPENDICULARS 27.0 m
BREADTH ON UPPER DECK 8.3 m
BREADTH ON DESIGN WATERLINE 8.2 m
DRAUGHT, MEAN, ON DESIGN WATERLINE 3.2 m
DISPLACEMENT OF THE AFORESAID 360 t
GROSS TONNAGE 183 t
NET TONNAGE 57 t
Speed, bollard pull
TRIAL SPEED  Free running speed in deep sea at full displacement, with the state of sea to 2, is to 11,0 kn
BOLLARD PULL The pull on hook is 20 t
Tank capacities
DIESEL OIL 44.0 t
LUBRICATING OIL 1.0 t
FEED WATER 2.2 t
DRINKING AND WASHING WATER 3.7 t

The said stores of diesel oil and lubricating oil are to provide for the operation of
the main engines at speed for not less than 150 hours.
Fire-fighting system
FIRE-FIGHTING EQUIPMENT Water fire-fighting - used as a fire electric pump capacity 25 m3/h; head 65 m w g.
  Diesel motor-driven fire pump, capacity 220 m3/h.
  Tank with foam agent capacity 0.5 m3.
  Foam mixer.
Arrangement of machinery installation
MAIN ENGINE MAŠINSKI ZAVOD 25 OKTOBAR, CNP 25/34,
2 x 590 kW
GENERATOR 1 SHAFT; 1 DIESEL
Radio
CALL SIGN 9A2241
