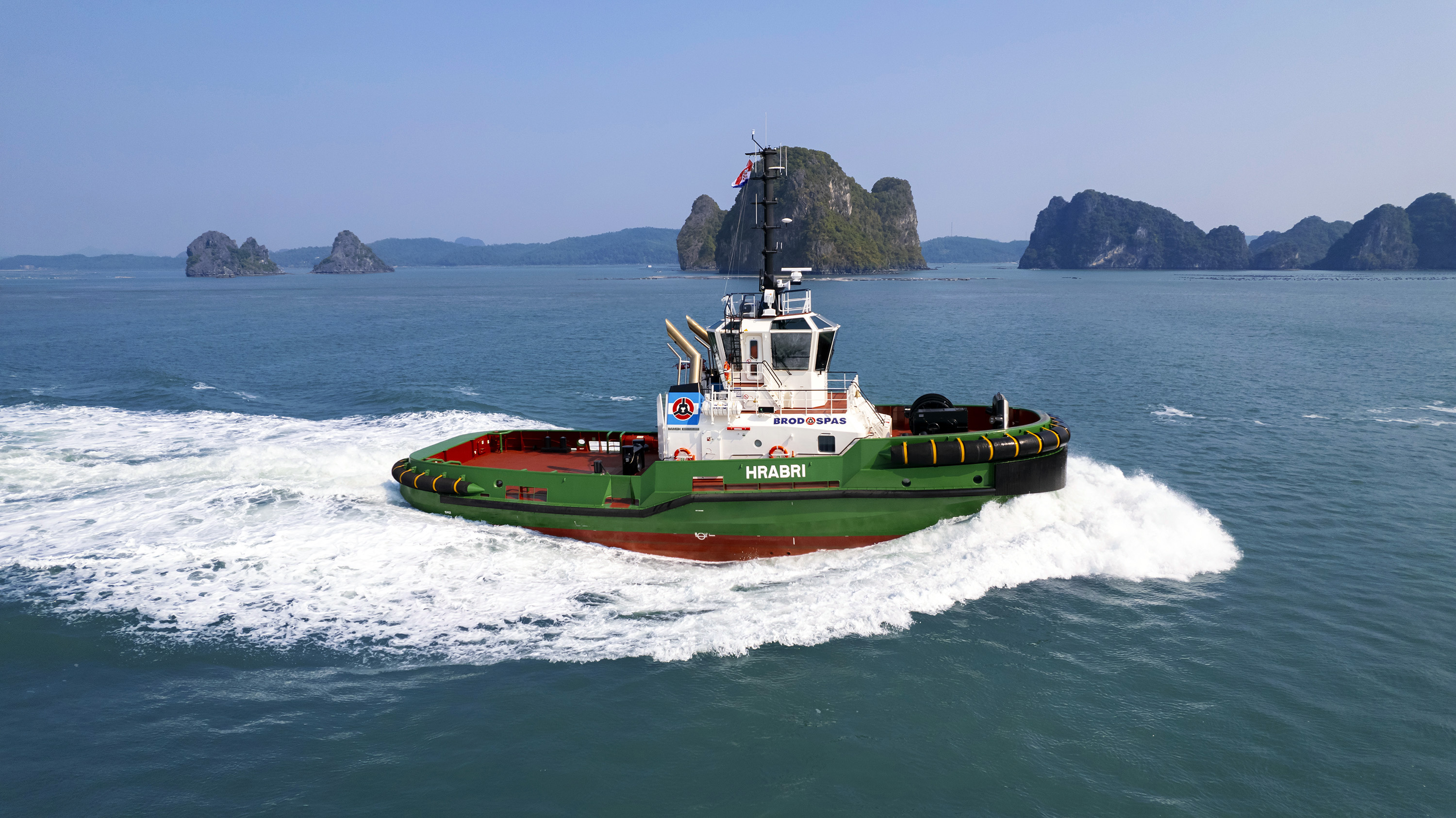

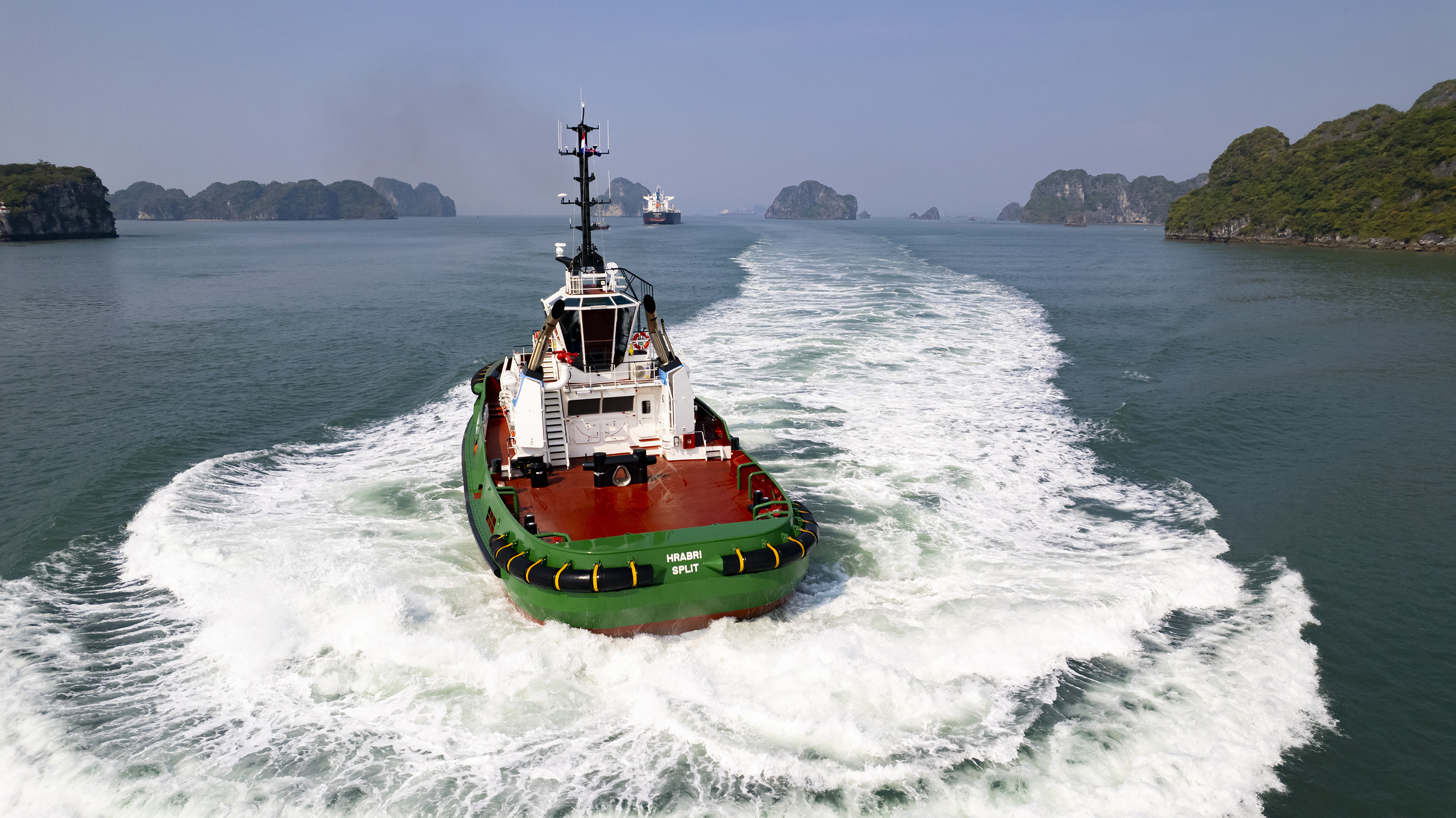

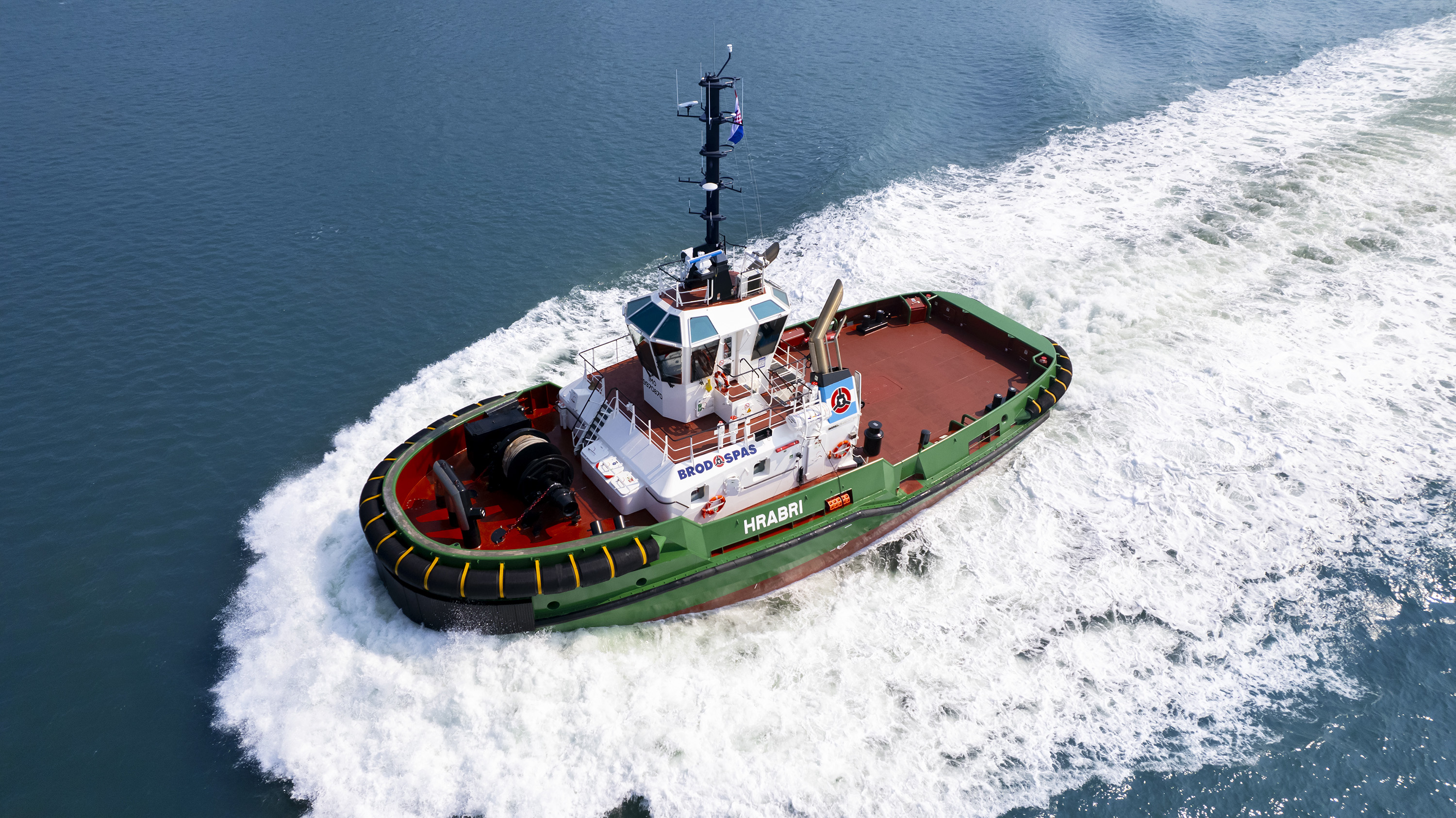

Hrabri

General
SHIP NAME HRABRI
IMO NUMBER 9970870
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
DELIVERED 2023
VESSEL BUILT Damen SCS - Vijetnam
CLASSIFICATION

CRS / BV
★HULL MACH
Escort Tug, Fire-fighting - E, Unrestricted navigation
★AUT UMS
Dimensions
LENGHT OVER ALL 28.57 m
LENGHT ARTICLE 2(8) 25.76 m
BREADTH MOULDED 10.80 m
DEPTH, MOULDED, MIDSHIP 4.60 m
DRAFT AFT 4.65 m
GROSS TONNAGE 299 t
NET TONNAGE  89 t
Tank Capacities
FUEL OIL TANKS 69.9 m3
LUBRICATING OIL CLEAN 2.3 m3
HYDRAULIC OIL  0.4 m3
FRESH WATER TANKS 14.2 m3
FOAM TANKS 10 m3
BILGE COLLECTING TANK 5 m3
SEWAGE COLLECTING TANK 7.5 m3
DIRTY OIL TANKS 2.3 m3
Speed, bollard pull
TRIAL SPEED AT 4.46 DRAFT, AND 3800 kW 13.8 kn
BOLLARD PULL AHEAD 62.0 t
BOLLARD PULL ASTERN 56.8 t
Towing gear & equipment
ANCHOR/TOWING WINCH

Hydraulically driven two speed winch with split drum and warping head, pull 31.5 ton at 9.5 m/min, slack rope speed up to 41 m/min, 150 ton brake.
CAPSTAN One, electrically driven, 5 t at 15 m/min.
TOWING HOOK One, 65 t SWL. Remote and local quick release.
ANCHORS AND CHAINS 2 x 360 kg, chain length 137.5 m, dia 19.0 mm, U2/Q2 quality.
Bridge - navigation equipment
BRIDGE, NAVIGATIONAL EQUIPMENT Radar, compass, satellite compass/GPS, autopilot, echosounder, AIS, Navtex, 2x – VHF eadio-telephone, EPIRB, SART
Accomodation
ACCOMODATION For max.6 persons (MLC 2006 compliant), including captain’s cabin, chief engineer’s cabin, 1 double crew cabin, 2 crew cabins, galley, mess/dayroom, dry store and sanitary facilities.
Life saving appliances
LIFE SAVING APPLIANCES Two inflatable liferufts, 8 persons each.
Propulsion machinery
MAIN ENGINES 2x Caterpillar 3512C TA HD/D
TOTAL POWER 13804 bkW (5104 bhp) at 1800 rpm
TRANSMISSION One inclined shaft with two universal joints and elastic coupling for each engine.
MAIN PROPELLERS 2 Azimuth thrusters, unit Type: Kongsberg Maritime US 205 includes hydraulic slipping clutch upper and lower gears, four bladed Ni-Al bronze fixed pitch propeller 2500 mm dia. Running in nozzle and hydraulic drive and control for thruster rotation.
ELECTRIC GENERATOR 2 x CAT C4.4 DITA, 107 kVA each, 3x400 V, 50 Hz, 1500 rpm
Fire-fighting system

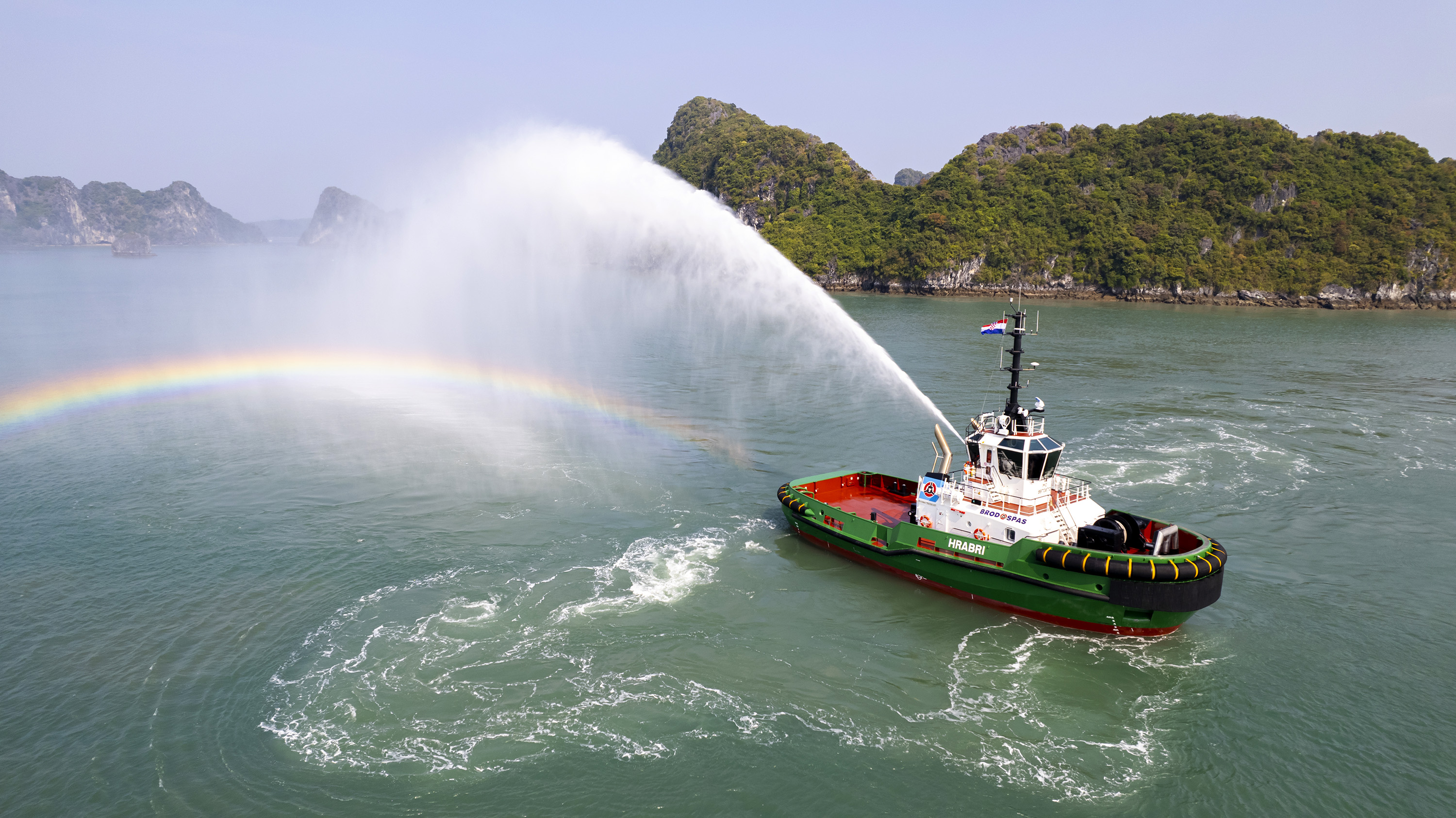

FIRE-FIGHTING EQUIPMENT Main engine driven pump, 1200 m³/h at 9.5 bar Fifi monitor 1 x 1200 m³/h water 120 m jet length / 300 m³/h foam
Radio
CALL SIGN 9A9312
Automation, control & monitoring
Control and monitoring of main engines, thrusters, towing winches etc.
from wheelhouse.
Engine switchboard room console for control and monitoring of machinery and ship system.
