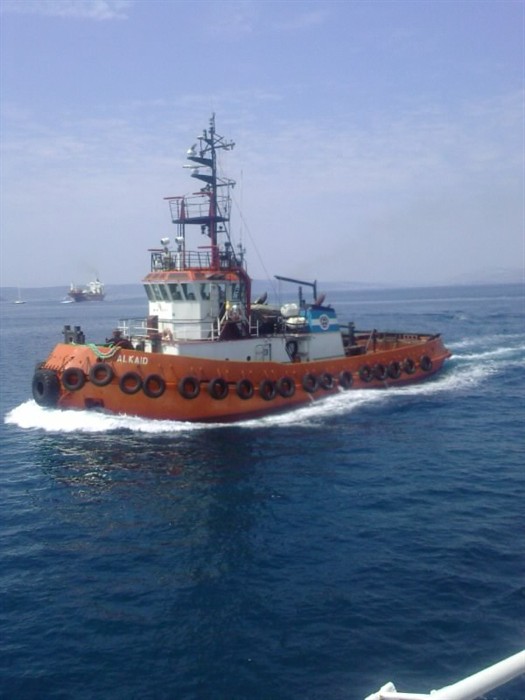

Alkaid


General
IMO NUMBER 8920933
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
DELIVERED 1991
VESSEL BUILT Promet Rivate Ltd. Singapore
CLASSIFICATION Bureau Veritas / Croatian Register
Dimensions
LENGHT OVERALL 28.00 m
LENGHT ARTICLE 2 (8) 26.52 m
BREADTH MOULDED 8.20 m
DEPTH, MOULDED, MIDSHIP 4.00 m
DRAFT 3.00 m
GROSS TONNAGE 220 t
NET TONNAGE 66 t
Tank Capacities
FUEL OIL TANKS 125.66 t
FRESH WATER TANKS 26.36 t
FOAM TANKS 15.16 m3
OIL DISPERSANT 13.31 m3
Speed, bollard pull
TRIAL SPEED 12.8 kn
BOLLARD PULL 30 t
Towing gear & equipment
TOWING WINCH One unit electro hydraulic towing winch of 50 t brake, 10 m/min.
Drum capacity: 500 m x 38 mm.
Remote and local control.
TOWING HOOK One 30 t SWL towing hook electro-hydraulic release.
Remote and local quick release.
WINDLASS/ROPE REEL One electro hydraulic anchor windlass/winch, suitable for 19 mm dia chain.
The rope winch to be suitable 75 mm dia nylon rope, 100 m
, and the rope breaking strengh of 44 t
ANCHORS AND CHAINS 3 x 360 kg, chain 220 m, U2 quality.
Bridge - navigation equipment
BRIDGE, NAVIGATIONAL EQUIPMENT One radar, magnetic compass, VHF.
SSB TRANSCEIVER FS-1500 (1.6 -23 MHz)
VHFx2 DEBEG 6330
FURUNO FM 2510
RADAR x2 TOKYO KEIKI BR-l00-054
FURUNO FR 8100 DA
ECHO SOUNDER FURUNO FE 6300
NAVTEX IMC NT 900
SAT. NAV. INTERPHASE STAR PILOT 6
EPIRB LOKATA 406-2
WATCHKEEPER 2182 kHz SAILOR R 501
Accomodation
ACCOMODATION High standard accomodation for 10 person, including two single and four double with common toilet space.
Life saving appliances
LIFE SAVING APPLIANCES Two inflatable liferafts, 10 persons each. One inflatable rescue boat.
Propulsion machinery
MAIN ENGINES Two units of GM 16 V - 149 T Detroit diesel marine propulsion engine, 2 x 906 kW at 1800 rpm.
GENERATING SET "GM" Detroit diesel 4-71 T coupled to a 100 kVA,
3 phase at 1500 rpm, 415 V.
BOW THRUSTER UNIT One unit "SCHOITEL" model: STT-010-LK thrust
approx. 1000 kg (62 kW electric motor driven)
OIL DISPERSANT SYSTEM The system consist of:
- 2x5 m hinged booma each with four spray nozzles
- SW supplay by motor driven pump, 37 kW, 50 m3/h at 110 in head.
Fire-fighting system
FIRE-FIGHTING EQUIPMENT Firemain, portable fire extinguishers, fire monitor
(for external, four units each capacity 3000 l/min.)
Radio
CALL SIGN 9A6797
Automation, control & monitoring
Control and monitoring of main engines, thruster, towing winches etc.
from wheelhouse.
Engine room console for control and monitoring of machinery and ship systems.
