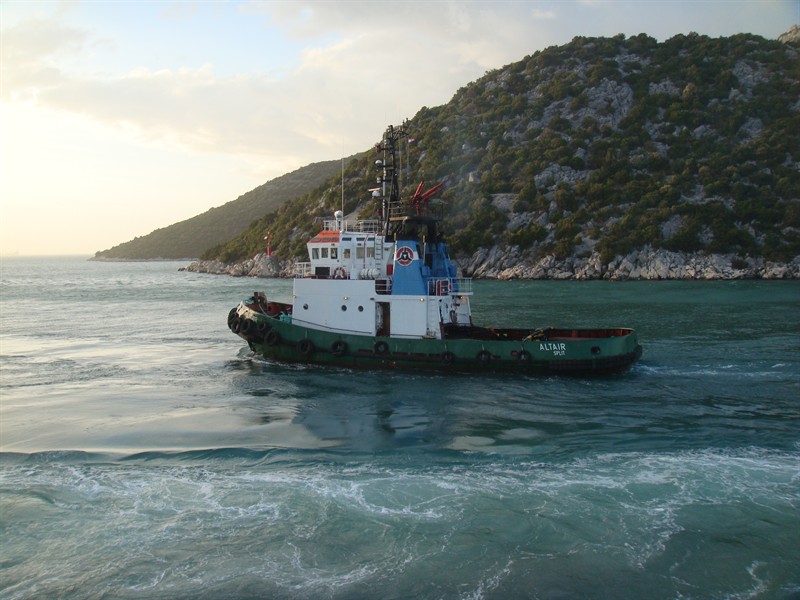

Altair


General
IMO NUMBER 8030831
OWNER Brodospas
MANAGER Brodospas - Split
FLAG Croatia - Split
DELIVERED 1982
VESSEL BUILT Brodogradilište "J.L. Mosor" Trogir
CLASSIFICATION Croatian Register
Dimensions
LENGHT OVERALL 26.10 m
LENGHT ARTICLE 2 (8) 24.14 m
BREADTH MOULDED 8.80 m
DEPTH, MOULDED, MIDSHIP 4.05 m
DRAFT 3.40 m
GROSS TONNAGE 230 t
NET TONNAGE 69 t
Tank Capacities
FUEL OIL TANKS 80 m3
FRESH WATER TANKS 20 m3
FOAM TANKS 10 m3
BILGE COLLECTING TANK 2 m3
SEWAGE COLLECTING TANK 6 m3
BALLAST TANK 30 m3
Speed, bollard pull
TRIAL SPEED AT 3.10 DRAFT, AND 1425kW 13 kn
BOLLARD PULL 29 t
CRUISING RANGE 80% MCR 2400 Nm
Towing gear & equipment
TOWING HOOK One 30 t SWL.
Remote and local quick release.
CAPSTAIN One, electrically driven, 25 kN at 12 m/min
WINDLASS One, electrically driven windlass with two warping ends.
ANCHORS AND CHAINS Two bower anchors, 480 kg each, chain 248 m dia 18 mm, U2 quality.
Bridge - navigation equipment
BRIDGE, NAVIGATIONAL EQUIPMENT One radar, magnetic compass, VHF radio-telephone.
Accomodation
ACCOMODATION High standard accomodation for 6 persons, including two single and two double with common toilet space.
Life saving appliances
LIFE SAVING APPLIANCES Two inflatable liferafts, 6 persons each.
Propulsion machinery
MAIN ENGINES Two "MAN-SPLIT" 8L 20/27; 2x720 kW
TRANSMISSION One inclined shaft with two universal joints and elastic coupling for each engine.
MAIN PROPELLERS Two thrusters, made by Liaaen type TCN 83/56-210
The thrusters have four bladed C.P. propelier 360° rotateable and fitted with nozzles.
ELECTRIC GENERATOR Two sets, 125 kVA each, 380 V, 50 Hz, AC
Fire-fighting system
FIRE-FIGHTING EQUIPMENT Two pumps of 250 m3/h, 13 bar, driven by main engines.
Radio
CALL SIGN 9A6581
Automation, control & monitoring
AUTOMATION, CONTROL & MONITORING
Control and monitoring of main engines, thruster, towing winches etc.
from wheelhouse.
Engine room console for control and monitoring of machinery and ship systems.
